AUDIO
Supported Audio File Formats: - MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported High-Quality Audio File Formats: - FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support: - DSD256, available via future BluOS update
Native Sampling Rates: - up to 192 kHz
Bit Depth: - 16-24 - Audio Controls & EQ:
BluOS Controller App
DAC: - ESS ES9039Q2M
Signal-to-Noise Ratio: - -118 dB
Distortion: - THD+N, 0.0007%
Software and Intergrations
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+ Music Services
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations: Amazon Alexa Skills

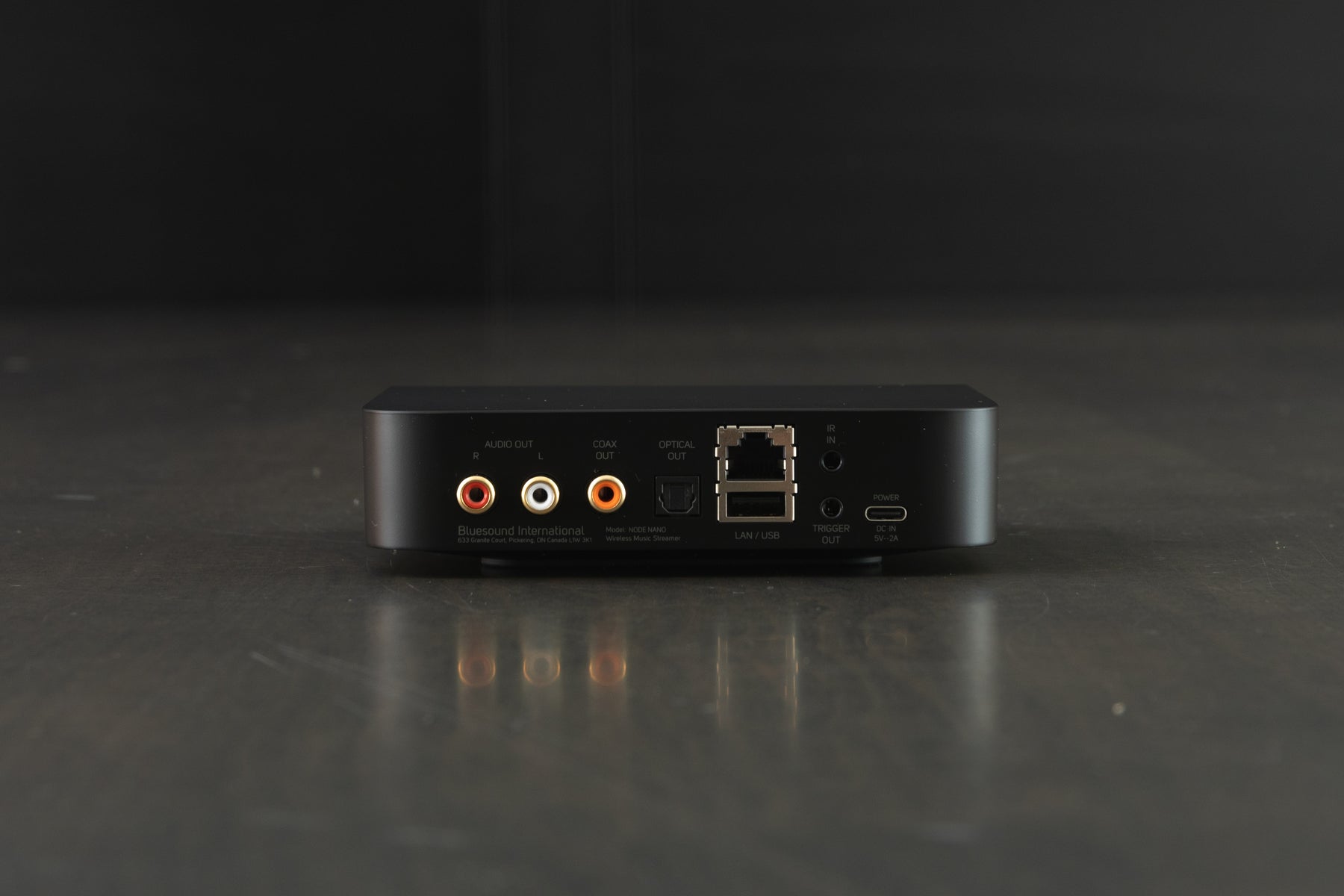

Connections
Power Supply: USB-C (5V-2A)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built-In: Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
IR Input: 3.5mm Jack
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Coaxial Output: RCA
Optical Output: TOSLINK digital optical
Trigger Out: 12 Volt
Headphone Output: Bluetooth
Subwoofer Output: Wireless to PULSE SUB+
General
Product Dimensions:
143 x 36 x 143mm (W x H x D)
5.6 x 1.4 x 5.6 in (W x H x D)*
