Lighting Solution

This setup has been the bread and butter of lighting solutions from Obsessed Garage for years now. Most people have a two-car garage, and we've recommended this solution to countless customers. The 5000K temperature and 11,400 Lumen or 17,100 Lumen output of these lights create the perfect environment for your projects in the garage and shop. These are simple, easy to install, tested, and proven, and will transform your space.

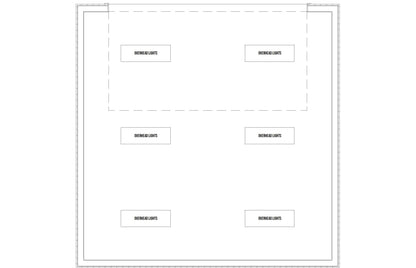

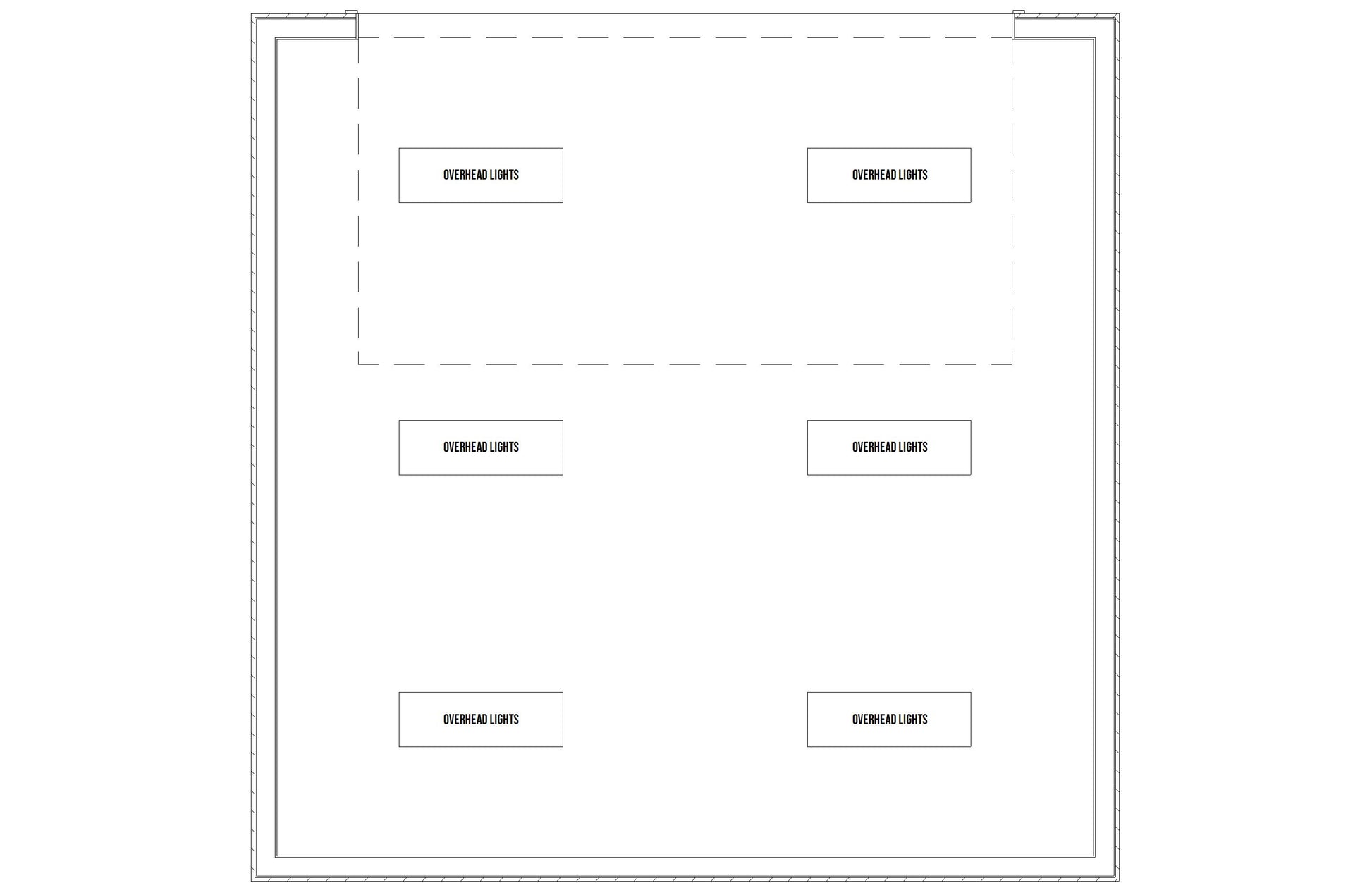

For a 2-car garage, you want to install these parallel to the garage door and positioned equally over the two parking bays of the garage. Install these lights on a single switch, or if you want, have two switches with one of them controlling just the lights over the garage door. You'll be able to leave those off when the garage door is up to help prevent shadows. For ceilings up to 13 feet, choose the 4-bulb variant. For anything 14 feet and up, choose the 6-bulb option.

Technical Drawing Download

4 Bulb Fixture

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High
Input Wattage: 80W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277V
LED Lumens: 14,400
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable

6 Bulb Fixture

Assembled Dimensions: 48.5" Long x 9" Wide x 3" High
Input Wattage: 120W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277v
LED Lumens: 21,600
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 1.1A / Amperage @ 277V: 0.44A
Base Type:  G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable
