Lighting Solution

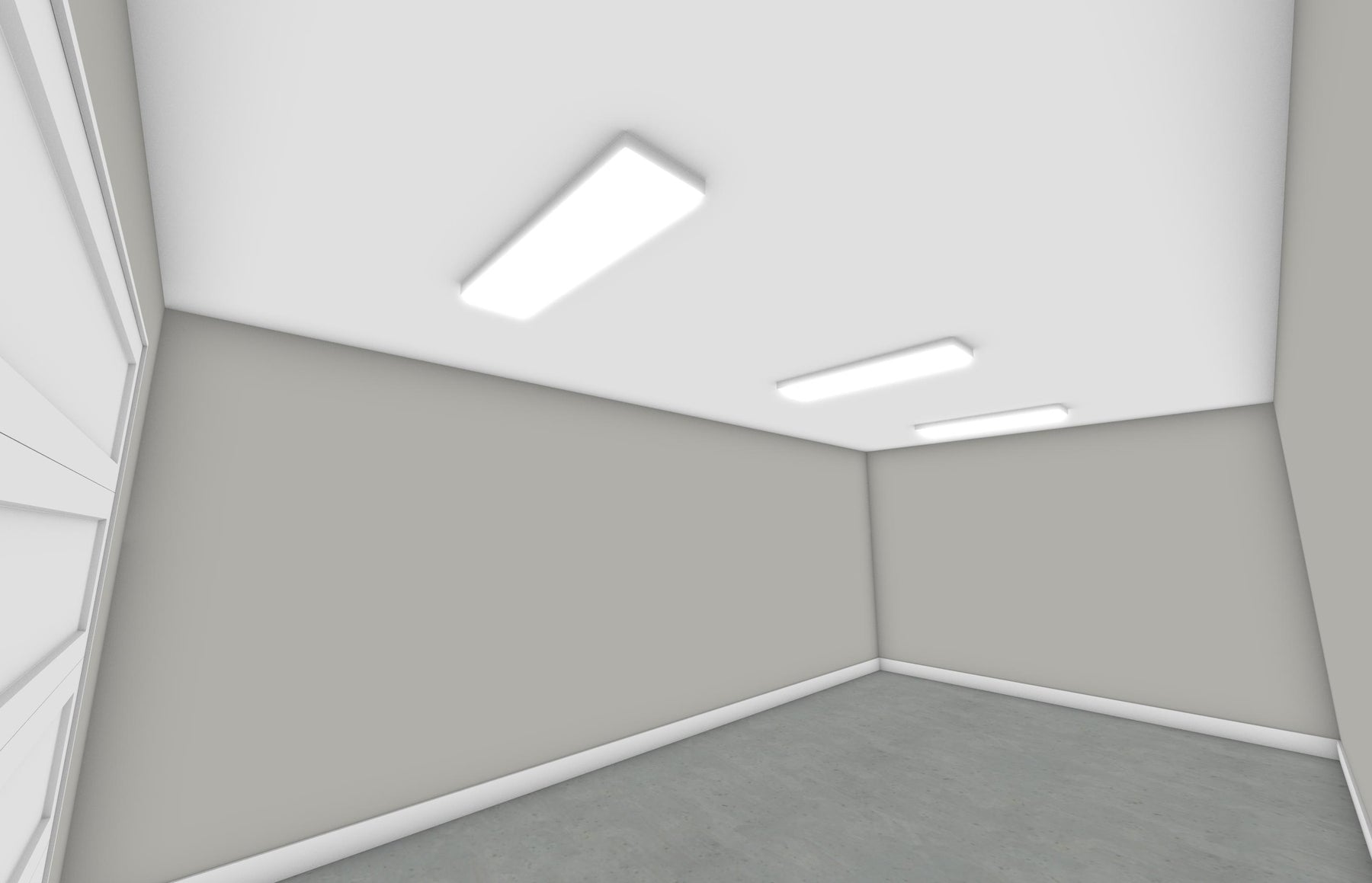

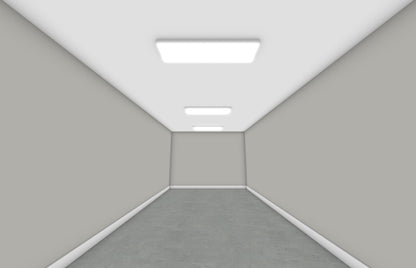

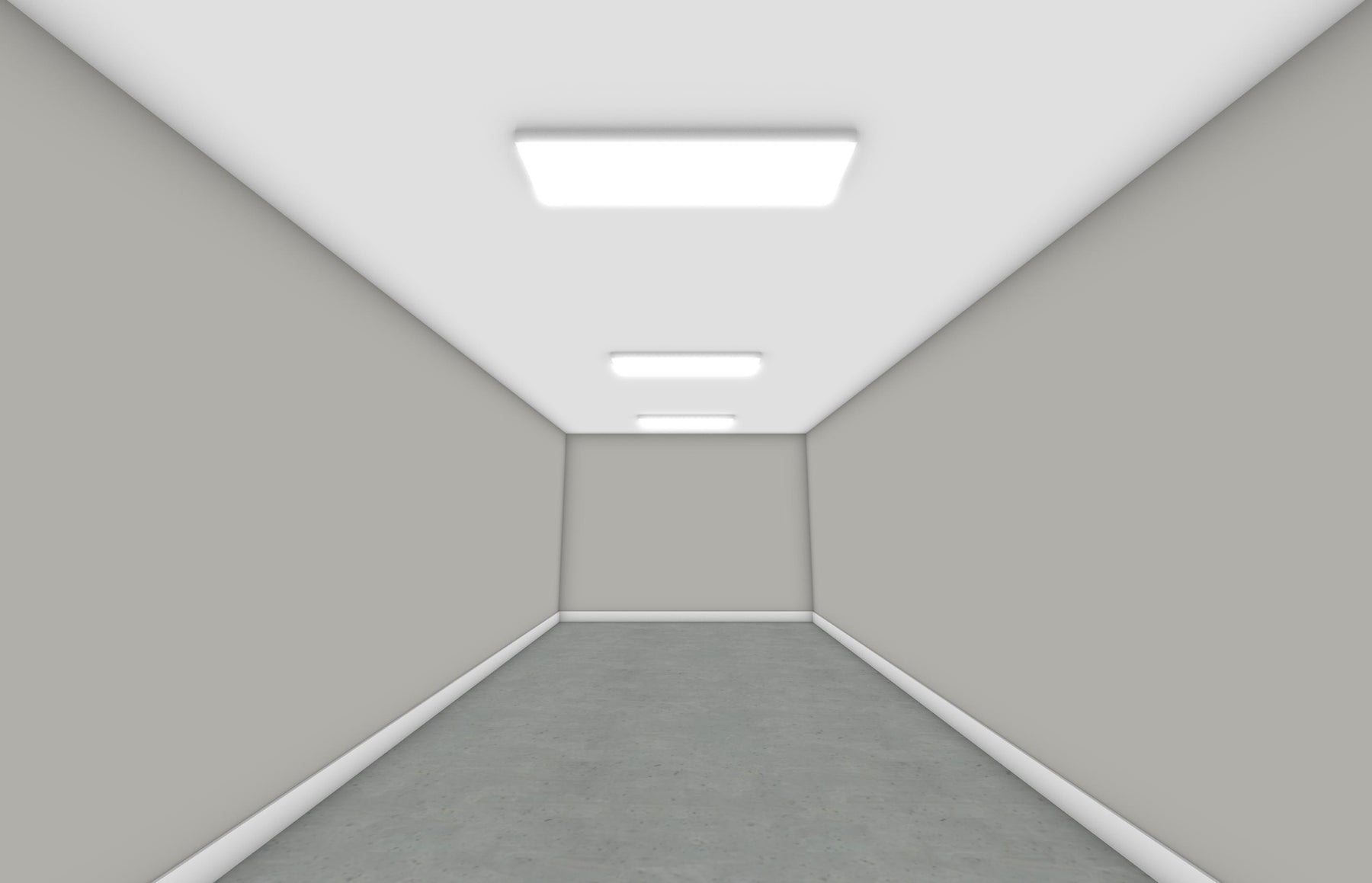

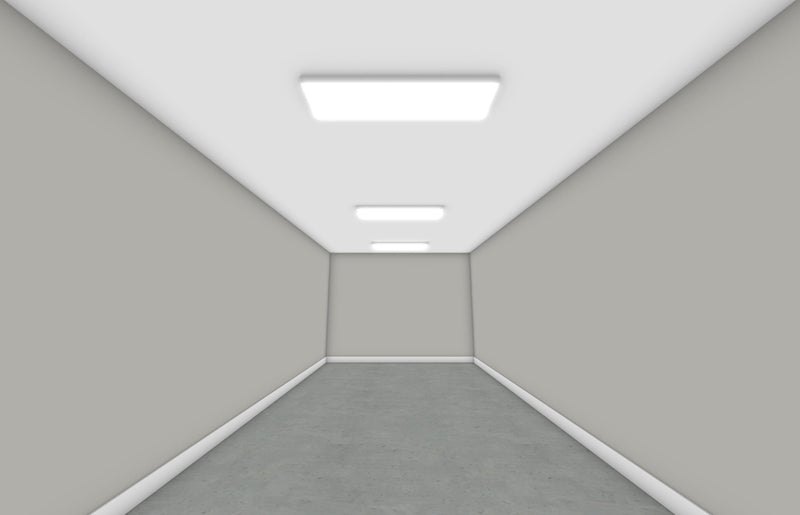

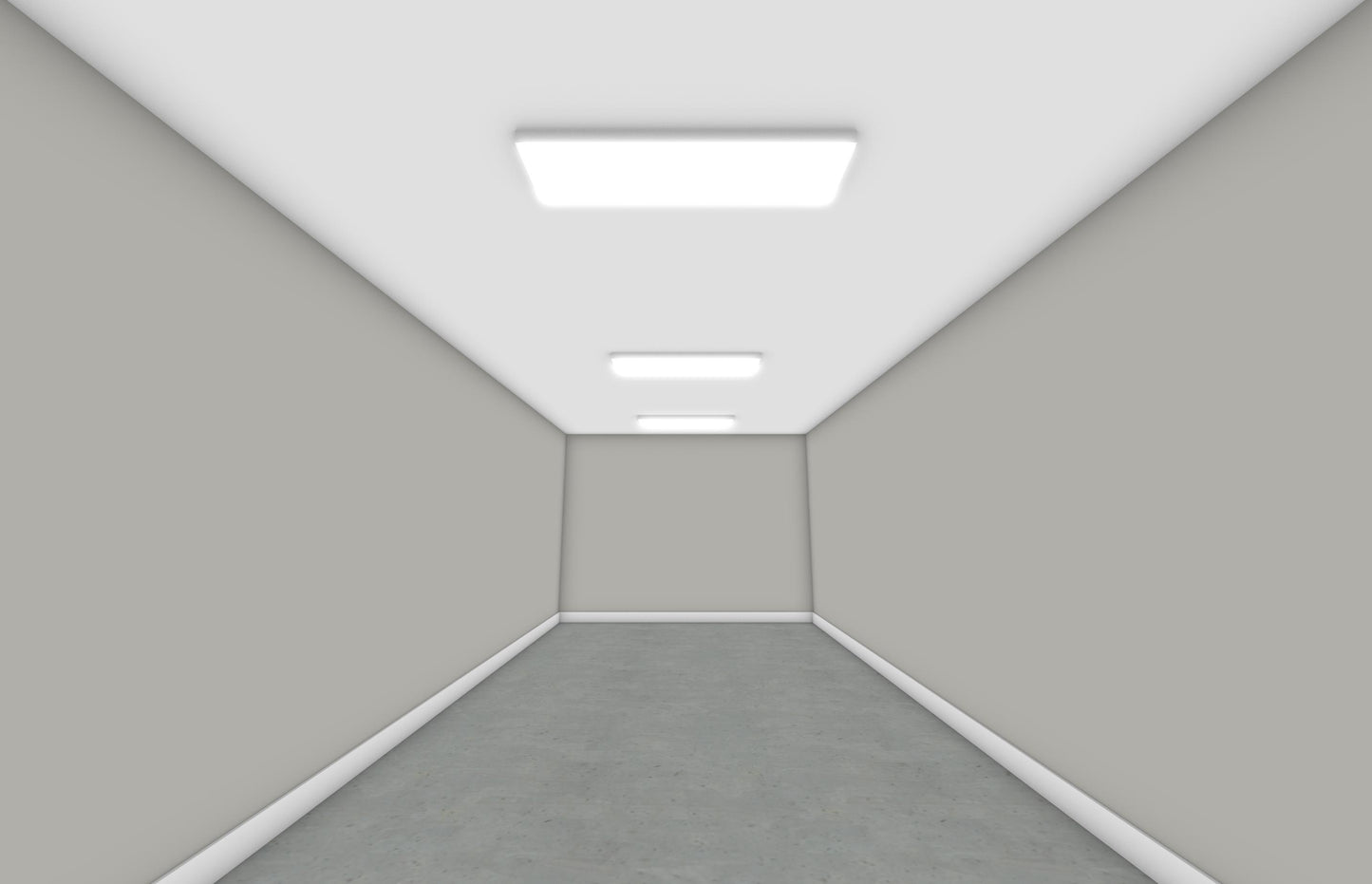

The 5000K 4-Bulb Overhead Light has been a staple for Obsessed Garage for a long time. This is a no-frills but excellent light for your garage. For a one-car garage, 3 fixtures work out really well to provide really even lighting throughout. Whether you're detailing, swapping out an exhaust, or sitting at a workbench, these lights will provide bright, neutral-white lighting.

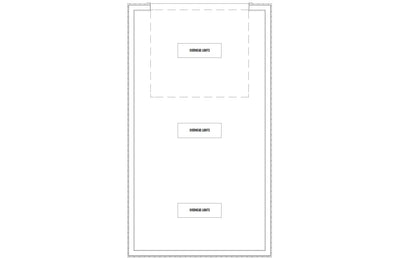

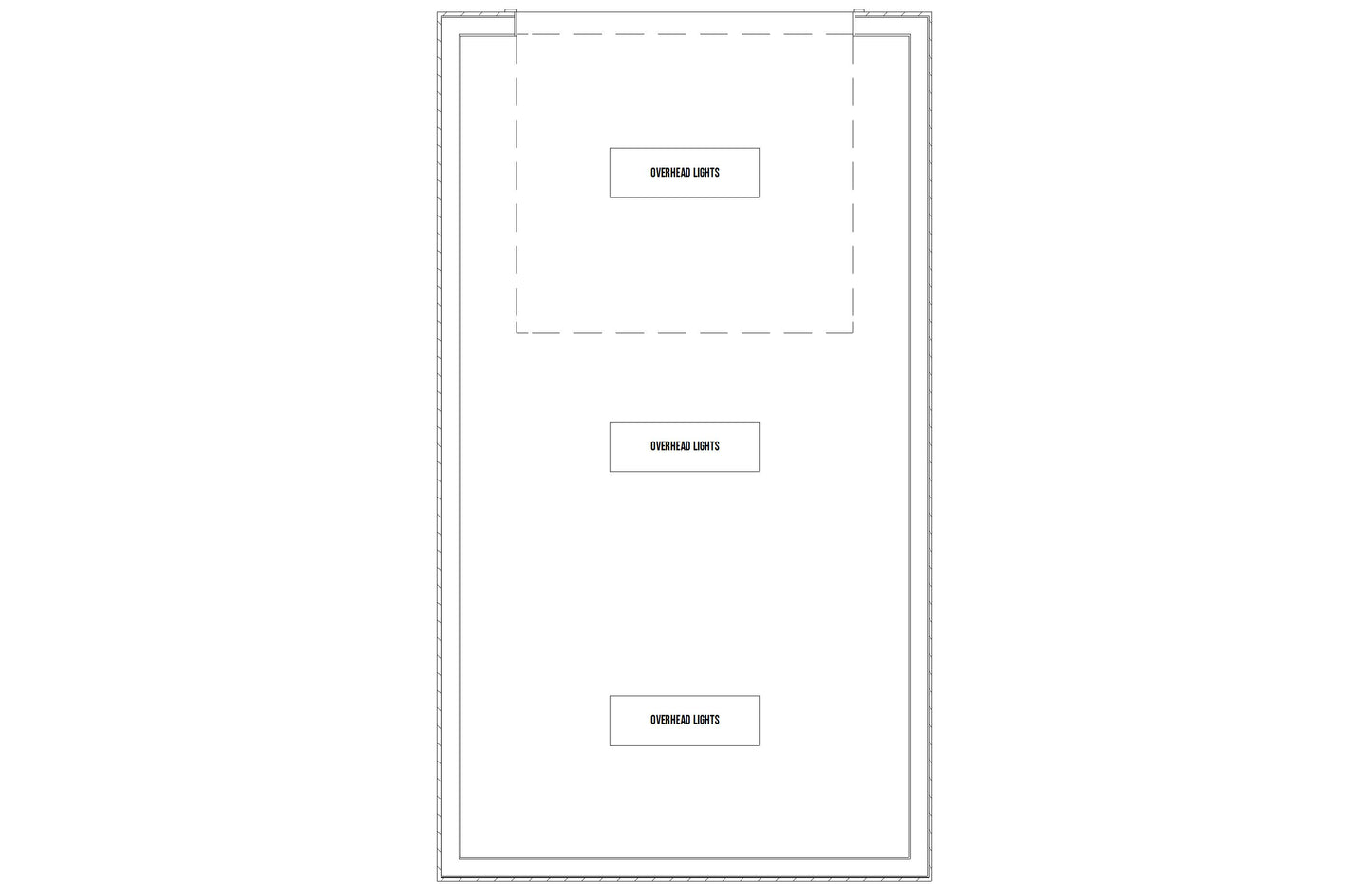

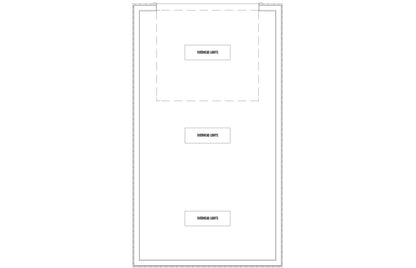

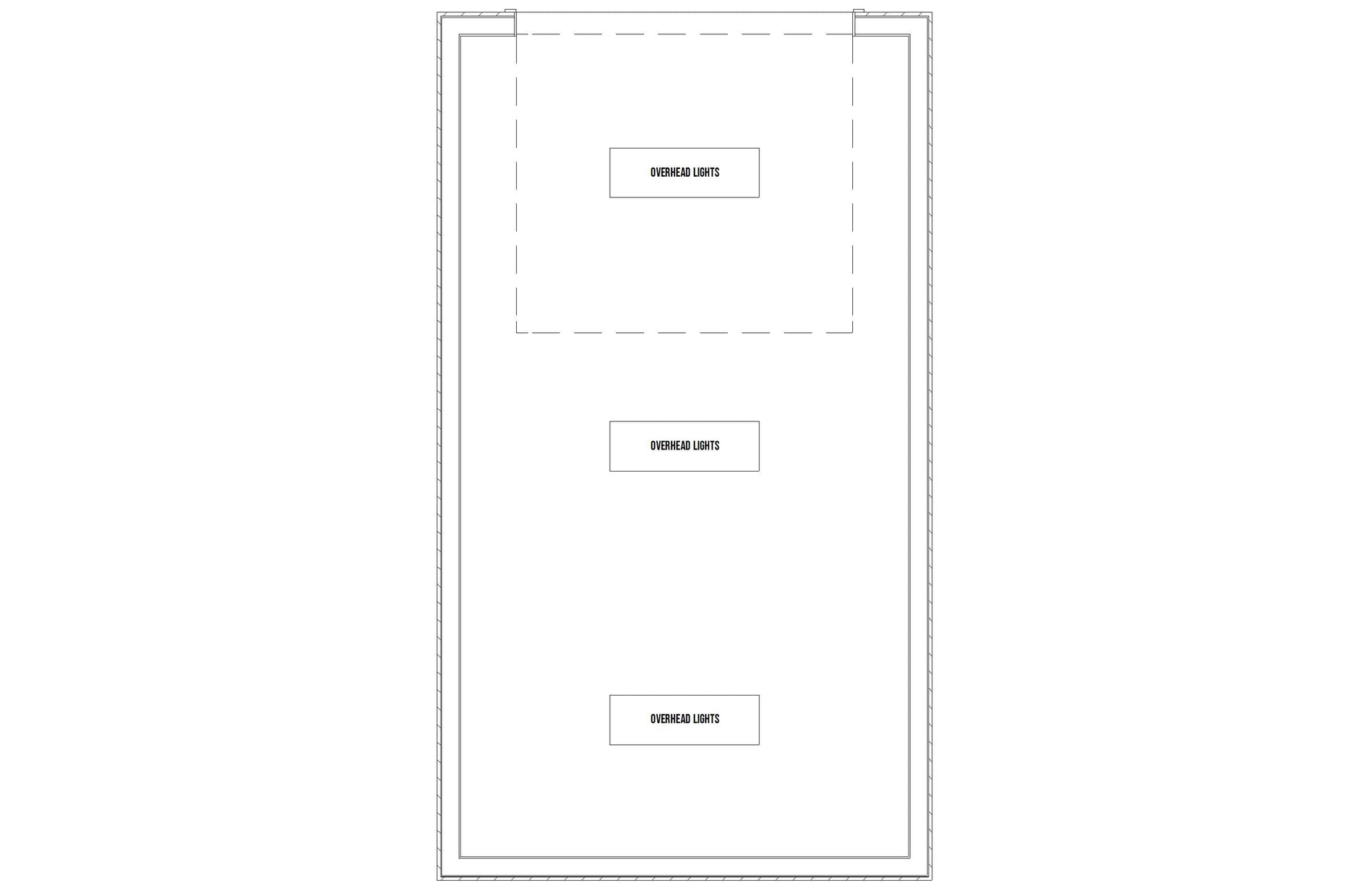

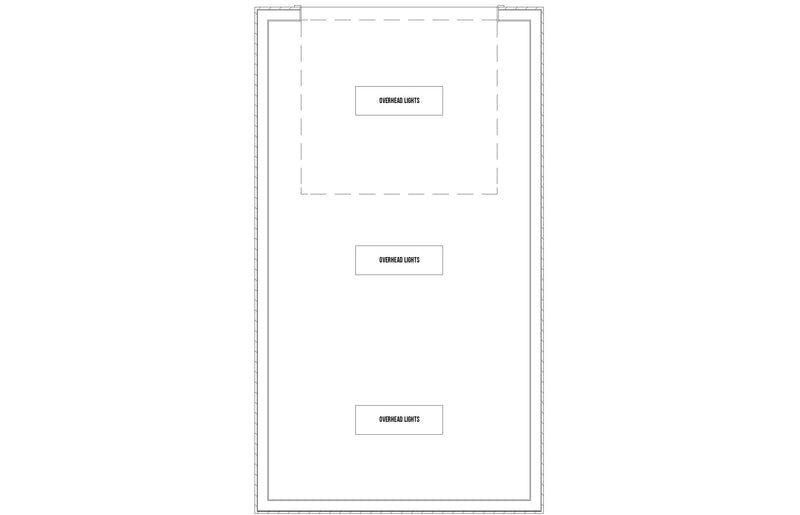

You'll want to set these up perpendicular to the vehicle parked in the space, so parallel to the garage door. If your single bay is a bit wider or longer, consider grabbing a fourth Overhead Light. For ceiling heights up to 13 feet, choose the 4-bulb. For 14 feet and higher ceilings, choose the 6-bulb option.

Technical Drawing Dowload

Specifications

4 Bulb Fixture

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High
Input Wattage: 80W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277V
LED Lumens: 14,400
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable

6 Bulb Fixture

Assembled Dimensions: 48.5" Long x 9" Wide x 3" High
Input Wattage: 120W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277v
LED Lumens: 21,600
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 1.1A / Amperage @ 277V: 0.44A
Base Type:  G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable

6 Bulb Fixture

- Rated to draw 1.2A per fixture
- 17,100 LED Lumen Output (32,490 Equivalent)
