Lighting Solution

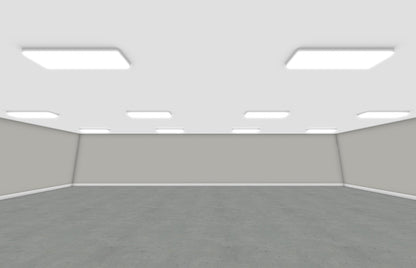

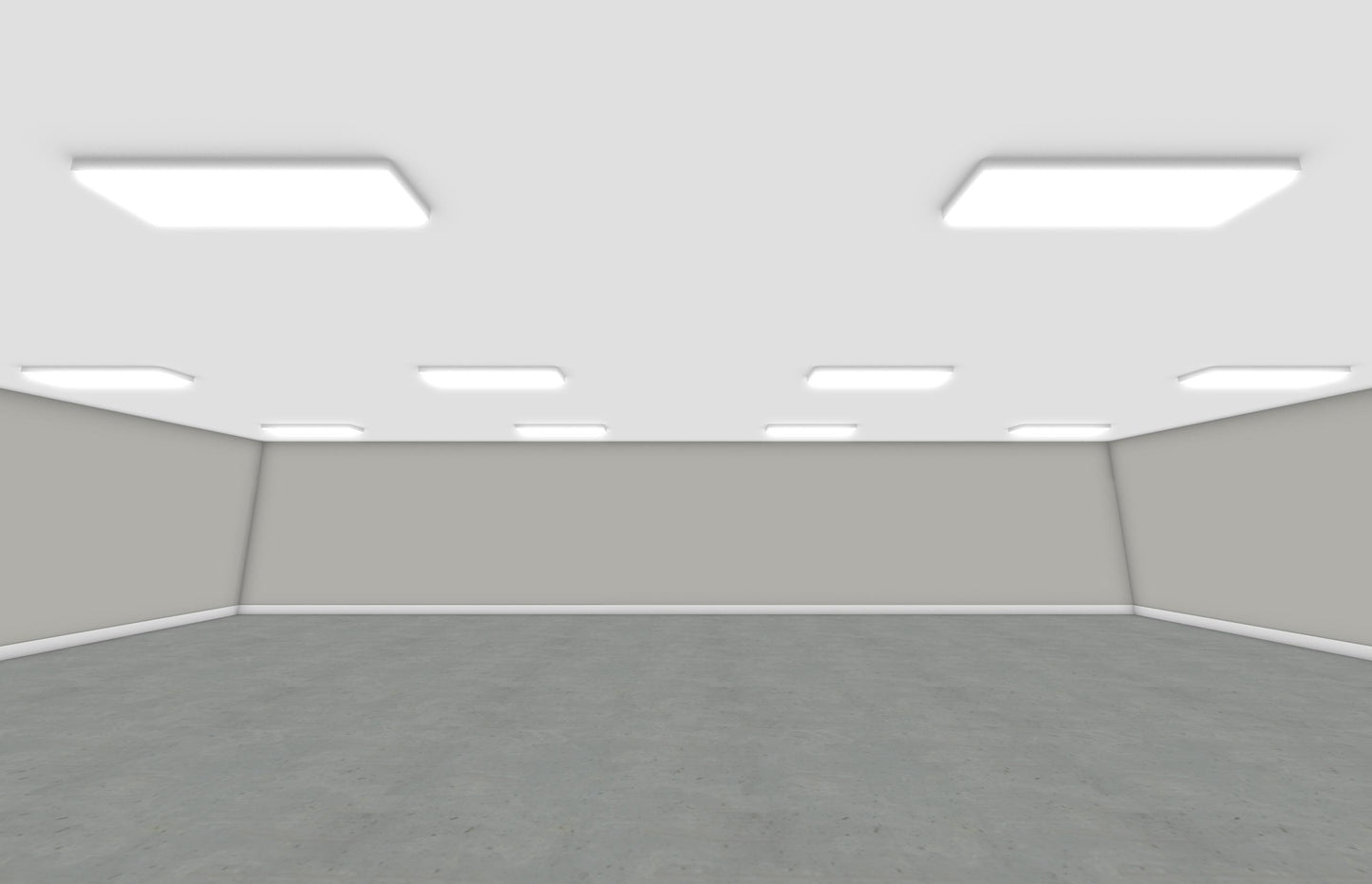

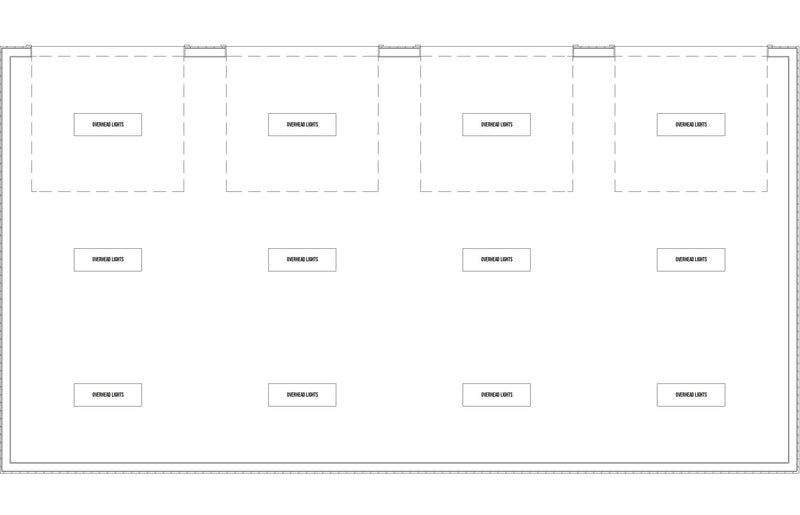

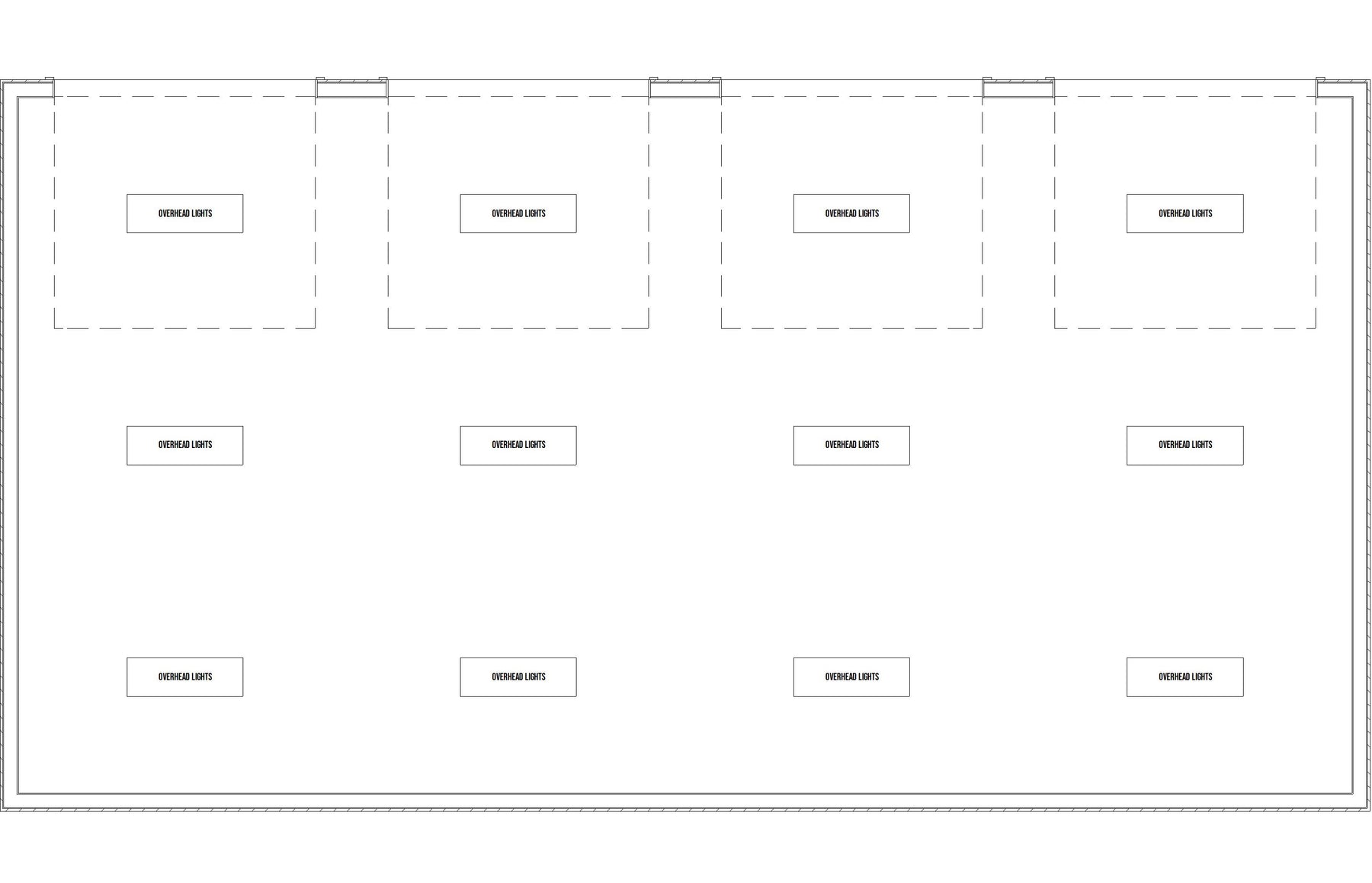

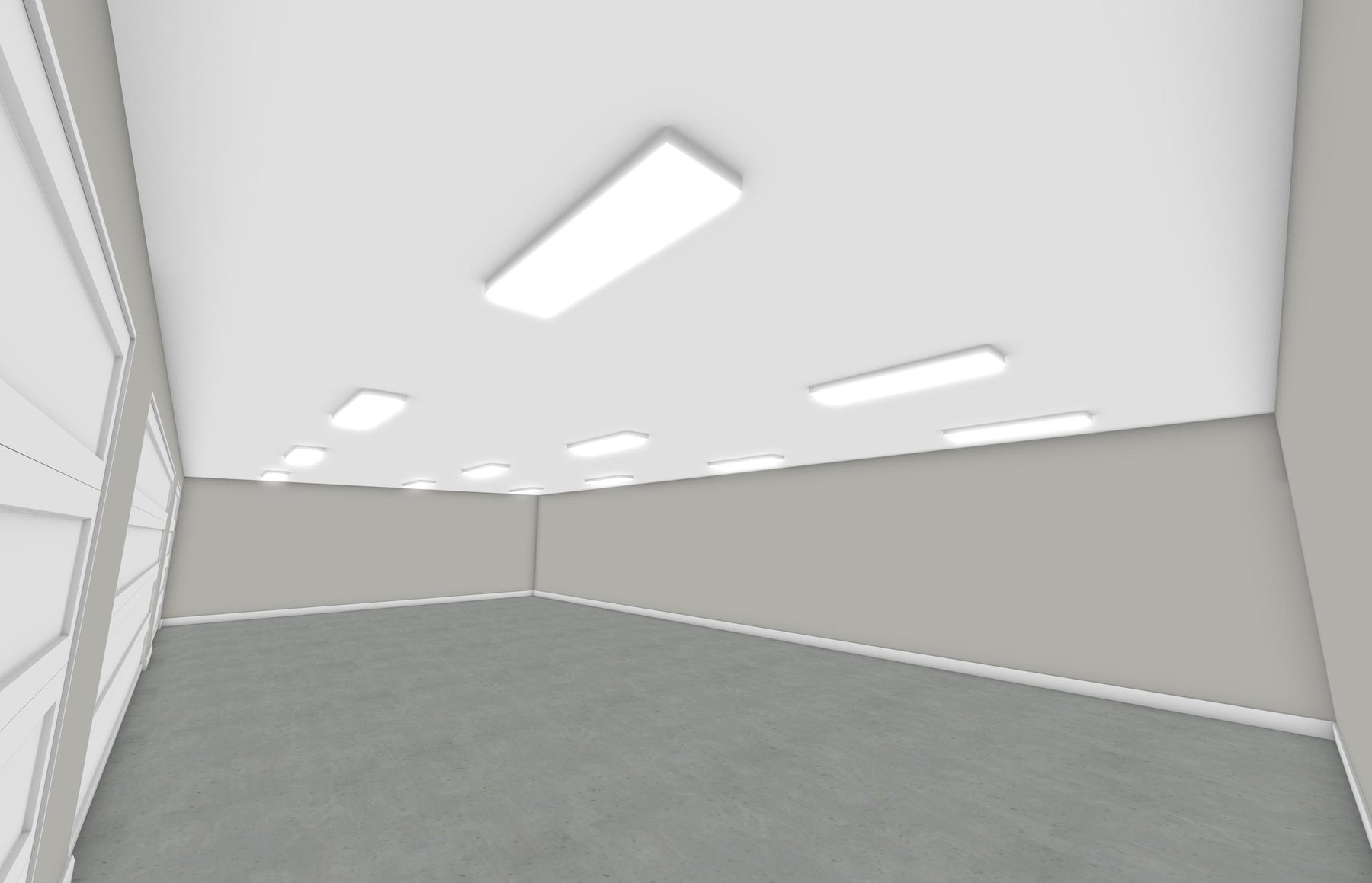

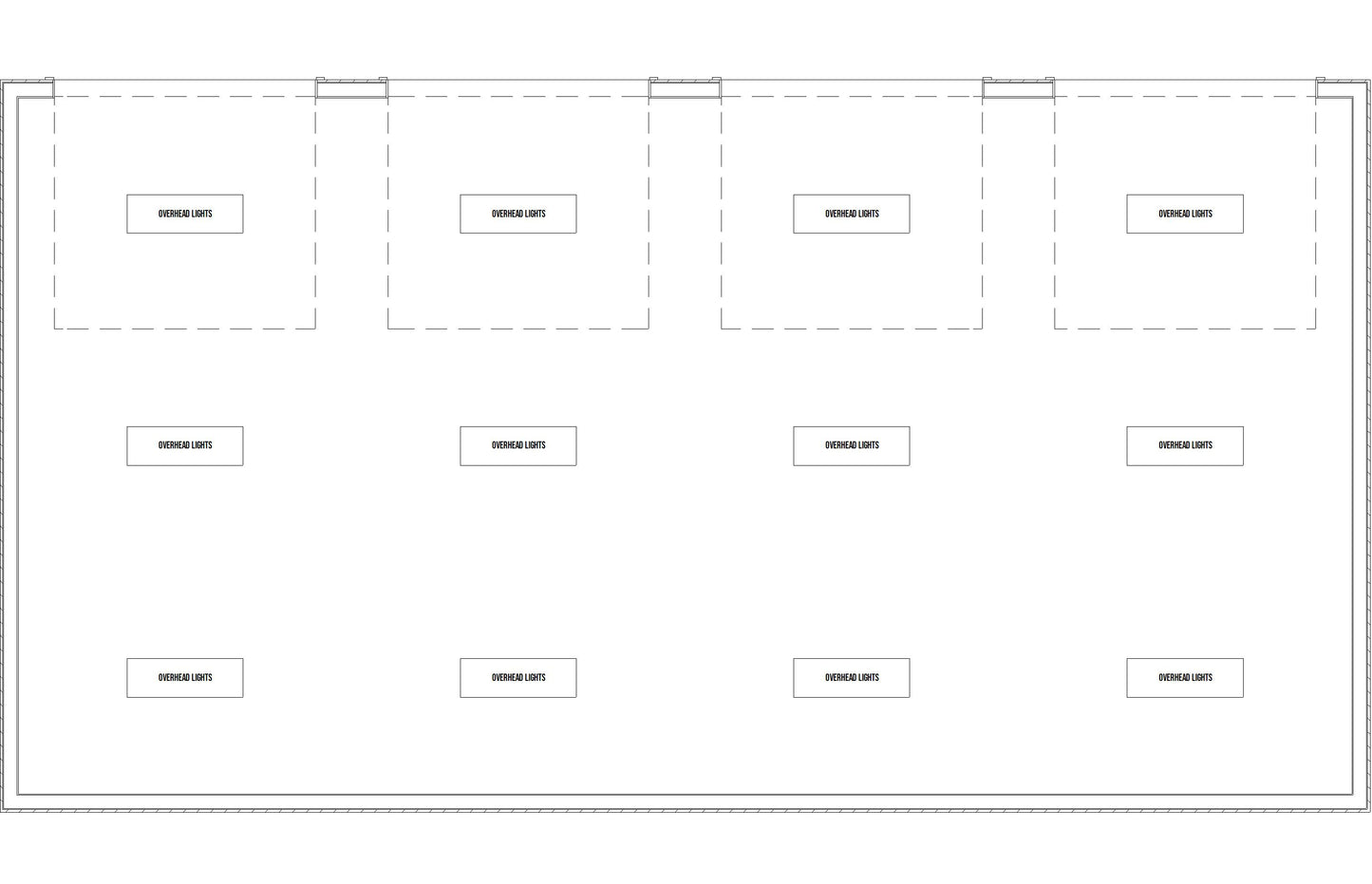

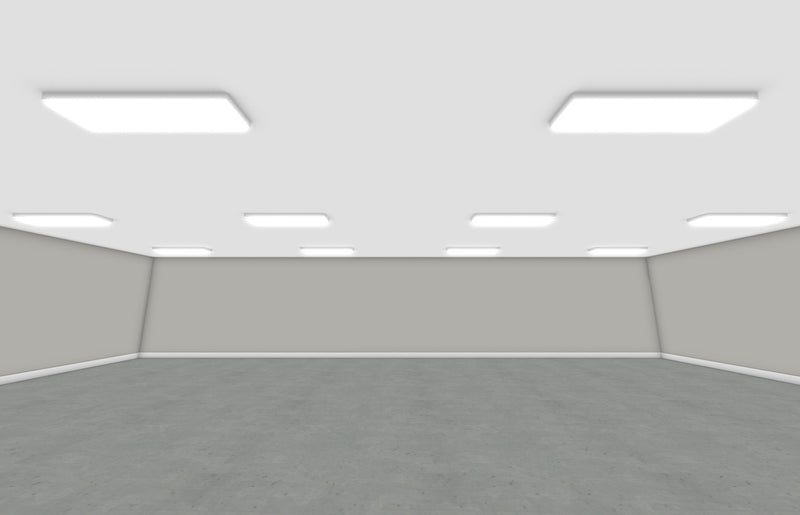

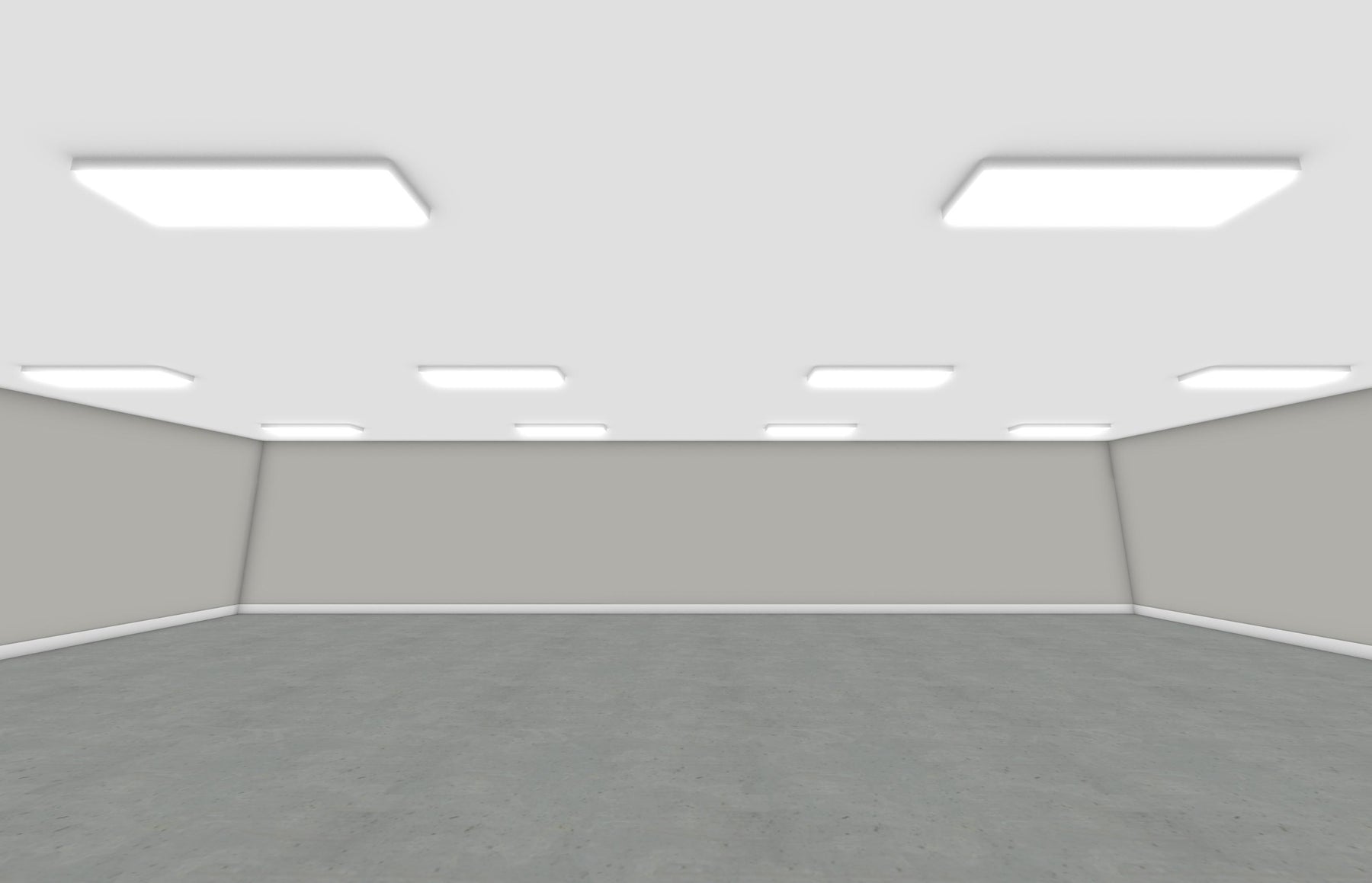

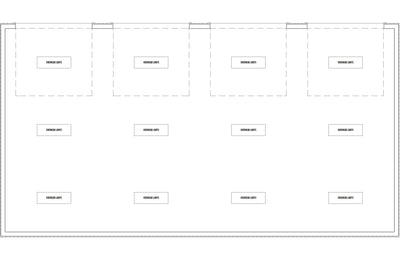

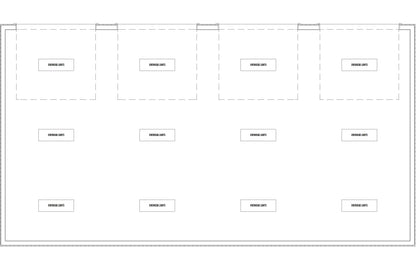

We get a lot of questions on lighting layouts and how many fixtures to purchase. For a four-car garage, you'll be shooting for a four-wide and three-deep layout. Cover each parking space with three fixtures perpendicular to the vehicle, and you'll be off to a good start. These lights have a super high lumen output, but they find a way to not be too harsh on your eyes. The color temperature is exactly what you want for your four-car garage.

You should install these with two separate switches to separate the room into halves. You could get creative as well, though. If you have storage or cabinets along the same wall as the entrance into your home, sometimes it works well to have that entire row along the wall be on its own switch. That way, when you walk out into the garage to grab something, you don't have to turn on every light.

For ceilings up to 13 feet, choose the 4-bulb variant. For anything 14 feet and up, choose the 6-bulb option.

Technical Drawing Download

Specifications

4 Bulb Fixture

Assembled Dimensions: 48.5" Long x 6" Wide x 3" High
Input Wattage: 80W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277V
LED Lumens: 14,400
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A
Base Type: G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable

6 Bulb Fixture

Assembled Dimensions: 48.5" Long x 9" Wide x 3" High
Input Wattage: 120W (Gen 2.0 much brighter, less watts than previous, more robust)
Voltage: 110-277v
LED Lumens: 21,600
Lumens per watt: 180+
Color Temperature: 5000K
CRI: 80+
Life: >70,000 Hours
Beam Angle: 170°
Amperage @ 120V: 1.1A / Amperage @ 277V: 0.44A
Base Type:  G13 Medium B-Pin
Equivalent Lumens: 40,100 (fluorescent equiv.)
BAA Compliant Luminaire

*Note: Non-dimmable
